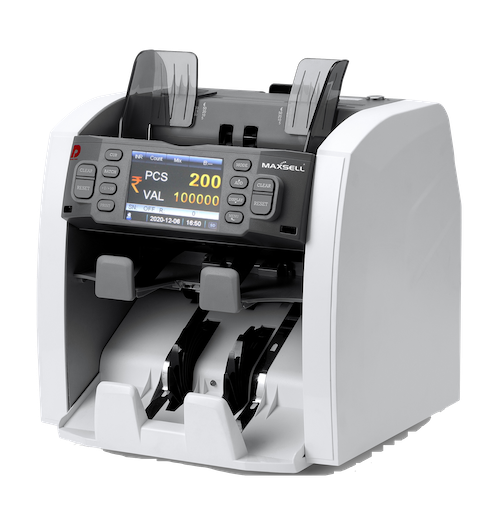

Matrix 8122

Intelligent Value Batch Function:

The Matrix 8120-VB is the first machine that is designed for Indian banknotes. It can accurately count the value of the unsorted (Mixed Denomination) banknotes into batches. For this simply select the Preset Batch Value, the machine will automatically pause counting each time the batch value is reached

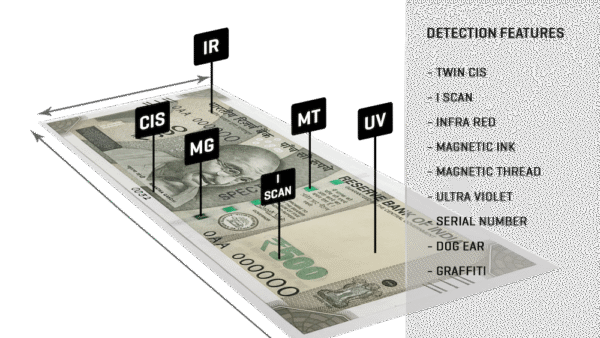

Advance Counterfeit Detection:

The Matrix 8120-VB uses the latest counterfeit detection technology to scrutinize seven features: Ultraviolet, Magnetic Ink, Metallic Thread, Infrared, Image, Size, and Thickness. It can accurately detect double banknotes and half notes. If a counterfeit is detected the machine automatically rejects the banknote without getting paused. After the completion of counting the machine will report the reason for the rejected banknotes.

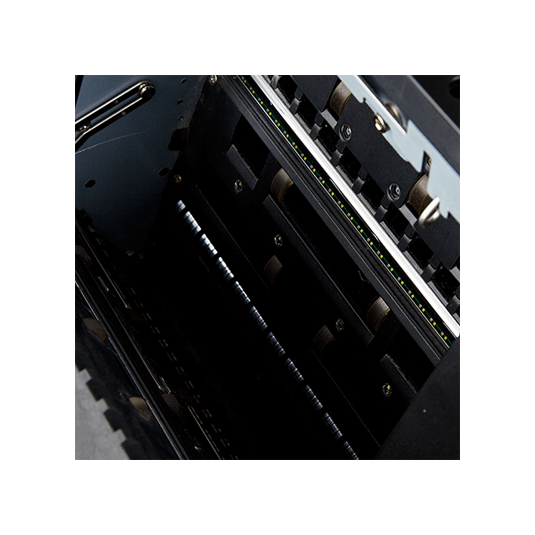

Serial Number Capture:

The Matrix 8120-VB uses two advanced CIS sensors to scan and record the serial number of each banknote. Complete detailed information of all the scanned serial numbers can be viewed, saved, and printed on a PC. Serial number recording comes handy when an audit trail is done and very useful for tracking.

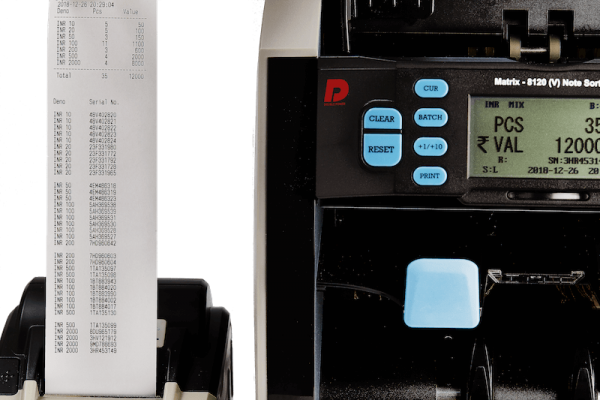

Currency Updating & PC Compatibility:

To make your administrative task much easier the Matrix 8120-VB can automatically display the detailed counting report on your PC, which can later be saved and printed. The full detailed list of all the scanned serial numbers can viewed, saved, and printed on a PC with just one click.

Face Sorting:

This is for single denomination (sorted) banknotes. Banknotes that are facing up are sorted into the stacker. Banknotes that are facing down are rejected into the rejection stacker.

Orientation Sorting:

This is for single denomination (sorted) banknotes. Banknotes with the correct orientation are sorted into the stacker. Banknotes that are upside down are rejected into the rejection stacker.

Denomination Sorting:

This method sorts one denomination into the stacker. All other denominations are rejected into the rejection stacker.

Free Software Upgrade:

Matrix 8120-VB has an integrated USB & SD card currency update port that can help in easy download of currencies and updates. Downloading via the SD card is particularly useful as it eliminates the need for a PC at the location. MAXSELL provides all currency updates at free of cost.

Top-loading Hopper:

The Matrix 8120-VB offers an innovative top-loading hopper for easy usage. It has a large note capacity that allows you to add banknotes to the hopper while the machine is still running, so that the counting process is carried on without any sort of interruptions.

Large Lcd Display & Easy-to-use Interface:

With a dual-user design, a large clear LCD, and an intuitive control panel, the Matrix 8120-VB makes the counting process easy. The clear LCD shows all the information that you need to know: from the mode of selection to the counted quantity & counted value.

Dual Pocket Design:

Matrix 8120-VB has a stacker commonly known as the reject pocket. This stacker automatically stacks all unrecognized or suspicious banknotes. After the counting process is done, you can view a detailed report that lists the reason for the rejected banknotes. The reject pocket is also used in the FACE and ORIENT modes to rapidly align a random stack of banknotes, all in the same direction.
